Analysis of the latest Mirai wave exploiting TBK DVR devices with CVE-2024-3721

The abuse of known security flaws to deploy bots on vulnerable systems is a widely recognized problem. Many automated bots constantly search the web for known vulnerabilities in servers and devices connected to the internet, especially those running popular services. These bots often carry Remote Code Execution (RCE) exploits targeting HTTP services, allowing attackers to embed Linux commands within GET or POST requests.

We recently observed the use of CVE-2024-3721 in attempts to deploy a bot in one of our honeypot services. This bot variant turned out to be part of the infamous Mirai botnet, targeting DVR-based monitoring systems. DVR devices are designed to record data from cameras, widely used by many manufacturers and can be managed remotely. In this article, we describe the new Mirai bot features and its revamped infection vector.

Exploitation

During a review of the logs in our Linux honeypot system, we noticed an unusual request line linked to a CVE-2024-3721. This vulnerability allows for the execution of system commands on TBK DVR devices without proper authorization as an entry point, using a specific POST request:

The POST request contains a malicious command that is a single-line shell script which downloads and executes an ARM32 binary on the compromised machine.

Typically, bot infections involve shell scripts that initially survey the target machine to determine its architecture and select the corresponding binary. However, in this case, since the attack is specifically targeted at devices that only support ARM32 binaries, the reconnaissance stage is unnecessary.

Malware implant – Mirai variant

The source code of the Mirai botnet was published on the internet nearly a decade ago, and since then, it has been adapted and modified by various cybercriminal groups to create large-scale botnets mostly focused on DDoS and resource hijacking.

The DVR bot is also based on the Mirai source code but it includes different features as well, such as string encryption using RC4, anti-VM checks, and anti-emulation techniques. We’ve already covered Mirai in many posts, so we’ll focus on the new features of this specific variant.

Data decryption

The data decryption routine in this variant is implemented as a simple RC4 algorithm.

The RC4 key is encrypted with XOR. After the key decryption, we were able to obtain its value: 6e7976666525a97639777d2d7f303177.

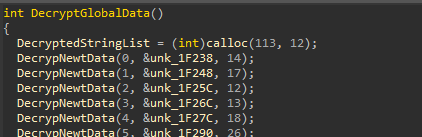

The decrypted RC4 key is used to decrypt the strings. After each piece of data is decrypted, it is inserted into a vector of a custom DataDecrypted structure, which is a simple string list:

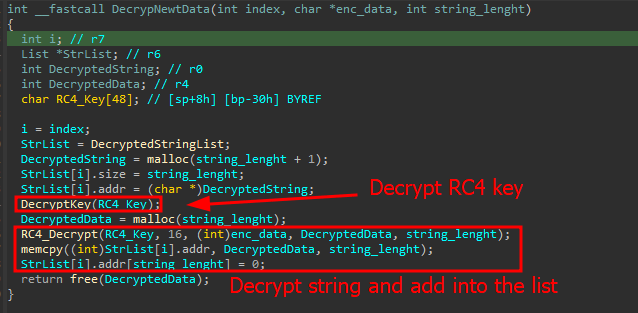

Data decryption routine

The global linked list with decrypted data is accessed whenever the malware needs particular strings.

Adding decrypted strings to the global list

Anti-VM and anti-emulation

To detect if it is currently running inside a virtual machine or QEMU, the malware lists all processes until it finds any mention of VMware or QEMU-arm. Listing running processes is simply a matter of opening the /proc directory, which is the proc filesystem on Linux.

Each process ID (PID) has its own folder containing useful information, such as cmdline, which describes the command used to start the process. Using this information, the malware verifies if there are any processes with VMware or QEMU-arm in their command line.

Process check

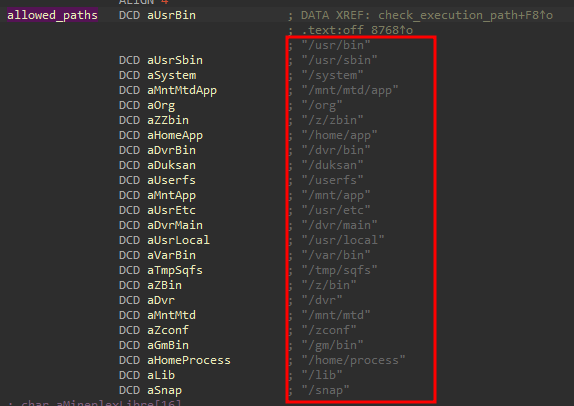

The implant also verifies if the bot process is running outside an expected directory, based on a hardcoded list of allowed ones:

Allowed directories

Once those checks are successfully completed, Mirai will continue normal execution, preparing the vulnerable device for receiving commands from the operator.

Infection statistics

According to our telemetry data, the majority of infected victims are located in countries such as China, India, Egypt, Ukraine, Russia, Turkey, and Brazil. It’s challenging to ascertain the exact number of vulnerable and infected devices globally. However, by analyzing public sources, we’ve identified over 50,000 exposed DVR devices online, indicating that attackers have numerous opportunities to target unpatched, vulnerable devices.

Conclusion

Exploiting known security flaws in IoT devices and servers that haven’t been patched, along with the widespread use of malware targeting Linux-based systems, leads to a significant number of bots constantly searching the internet for devices to infect.

The main goal of such bots is to carry out attacks that overwhelm websites and services (DDoS attacks). Most of these bots don’t stay active after the device restarts because some device firmware doesn’t allow changes to the file system. To protect against infections like these, we recommend updating vulnerable devices as soon as security patches become available. Another thing to consider is a factory reset if your device is indeed vulnerable and exposed.

All Kaspersky products detect the threat as HEUR:Backdoor.Linux.Mirai and HEUR:Backdoor.Linux.Gafgyt.

Indicators of compromise

Host-based (MD5 hashes)
011a406e89e603e93640b10325ebbdc8
24fd043f9175680d0c061b28a2801dfc
29b83f0aae7ed38d27ea37d26f3c9117
2e9920b21df472b4dd1e8db4863720bf
3120a5920f8ff70ec6c5a45d7bf2acc8
3c2f6175894bee698c61c6ce76ff9674
45a41ce9f4d8bb2592e8450a1de95dcc
524a57c8c595d9d4cd364612fe2f057c
74dee23eaa98e2e8a7fc355f06a11d97
761909a234ee4f1d856267abe30a3935
7eb3d72fa7d730d3dbca4df34fe26274
8a3e1176cb160fb42357fa3f46f0cbde
8d92e79b7940f0ac5b01bbb77737ca6c
95eaa3fa47a609ceefa24e8c7787bd99
96ee8cc2edc8227a640cef77d4a24e83
aaf34c27edfc3531cf1cf2f2e9a9c45b
ba32f4eef7de6bae9507a63bde1a43aa
IPs
116.203.104[.]203
130.61.64[.]122
161.97.219[.]84
130.61.69[.]123
185.84.81[.]194
54.36.111[.]116
192.3.165[.]37
162.243.19[.]47
63.231.92[.]27
80.152.203[.]134
42.112.26[.]36
